SKU: 20B-1-SYNERGY-10FT-RENOLD

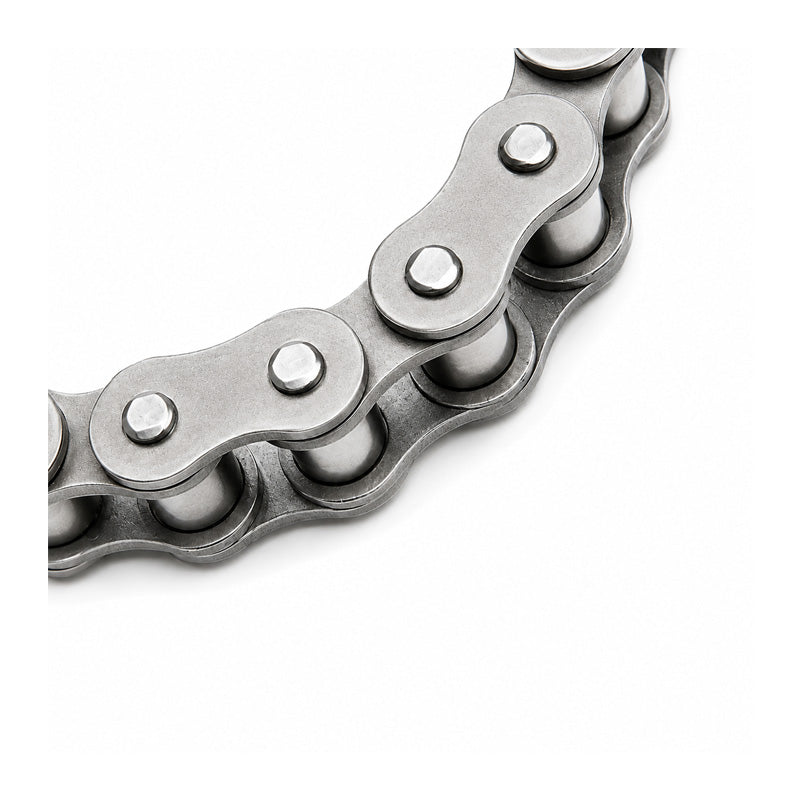

Renold Synergy 20B-1 BS Simplex Roller Chain 1-1/4 inch Pitch - 10 Feet Length
- Regular price
- CHF 1,060.00 ex VAT
- Sale price
- CHF 1,060.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 943.40
19+
CHF 890.40
29+
CHF 879.80
39+
CHF 869.20
49+
CHF 858.60
74+
CHF 848.00
99+
CHF 795.00
199+
CHF 784.40
249+
CHF 773.80
499+
CHF 763.20
999+
CHF 742.00
SKU:
20B-1-SYNERGY-10FT-RENOLD
Renold Synergy 20B-1 BS Simplex Roller Chain 1-1/4 inch Pitch - 10 Feet Length
- Regular price
- CHF 1,060.00 ex VAT
- Sale price
- CHF 1,060.00
- Regular price
-
Description
Renold Synergy High Performance Chain: Renold Synergy chain will last three times longer in normal working conditions than your current non-Renold chain or your next chain is free. It's that simple. If the working life of your non Renold Chain is unsatisfactory, try Renold Synergy®. You will see productivity increase, downtime cut and costs saved. Renold are so confident that their chain will significantly outlast any other non-Renold brand chain that we will give you a replacement chain free*. There has never been a better time to specify Renold Synergy® - the only high performance transmission chain.
* Subject to site visit from a Renold Service Engineer
Renold Synergy® has transformed the productivity and efficiency of all these industrial applications and more.
Technical
| Pitch (A) | = | 1.25 inch |
| Pitch (A) | = | 31.75mm |
| Inside Width min (B) | = | 19.56mm |
| Roller Diameter max (C) | = | 19.05mm |
| Plate Height max (D) | = | 26.42mm |
| Plate Width Inner max (E) | = | 4.62mm |
| Plate Width Outer max (F) | = | 3.61mm |
| Pin Diameter max (G) | = | 10.19mm |
| Pin Length max (H1) | = | 39.8mm |
| Connecting Link Extension max (J) | = | 2.7mm |
| ISO606 Tensile Strength min | = | 95000 N |
| Weight | = | 3.85kg/m |
