SKU: 20212-K-TVP-C3+H212-MB
20212KTVPC3 Barrel Roller Bearing with Taper Bore and H212 Adaptor Sleeve 55x110x22mm - Allow 2-3 Days
- Regular price
- CHF 202.00 ex VAT
- Sale price
- CHF 202.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 179.78
4
CHF 169.68
9
CHF 167.66
19
CHF 165.64
29
CHF 163.62
39
CHF 161.60
49
CHF 151.50
59
CHF 149.48
249
CHF 147.46
499
CHF 145.44
999
CHF 141.40
SKU:
20212-K-TVP-C3+H212-MB
20212KTVPC3 Barrel Roller Bearing with Taper Bore and H212 Adaptor Sleeve 55x110x22mm - Allow 2-3 Days
- Regular price
- CHF 202.00 ex VAT
- Sale price
- CHF 202.00
- Regular price
-
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a tapered bore and a solid window cage made from glass fibre reinforced polyamide. This bearing is also available with an adaptor sleeve for locating purposes. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |

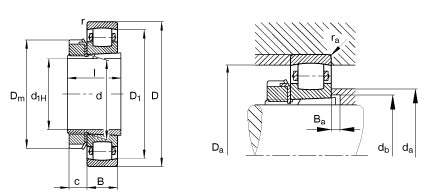

Technical
| d1H | = | 55mm |
| D | = | 110mm |
| B | = | 22mm |
| Ba min | = | 6mm |
| c | = | 13mm |
| D1 | = | 97.8mm |
| Da max | = | 101mm |
| Dm | = | 80mm |
| d | = | 60mm |
| da max | = | 73mm |
| db min | = | 64mm |
| l | = | 38mm |
| ra max | = | 1.5mm |
| r min | = | 1.5mm |
| Adaptor sleeve | = | H212 |
| Dynamic radial load Cr | = | 85000 N |
| Static radial load C0r | = | 100000 N |
| Limiting speed nG | = | 3200 rpm |
| Fatigue limit radial load Cur | = | 10600 N |
| Weight | = | 1.172 kg |
