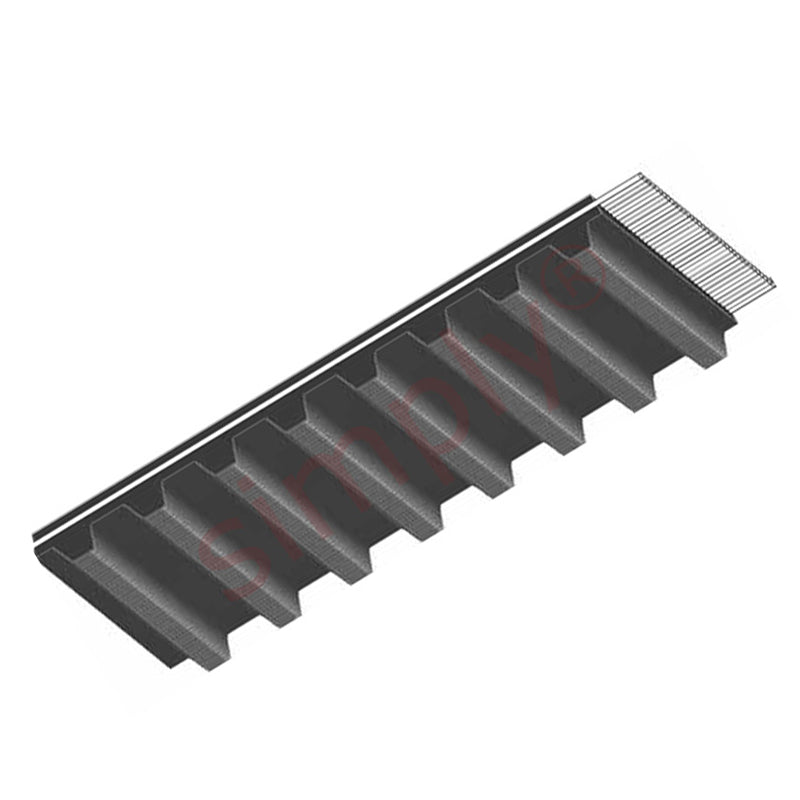

16K1.5/1242 ContiTech Synchroflex Toothed Belt 16mm Wide 1.5mm Pitch 828 Teeth

SKU: 16K1.5/1242

16K1.5/1242 ContiTech Synchroflex Toothed Belt 16mm Wide 1.5mm Pitch 828 Teeth

CHF 64.00 ex VAT
CHF 64.00
ex VAT
Not in stock

Quantity Price Breaks

3 CHF 56.96
5 CHF 53.76
9 CHF 53.12
19 CHF 52.48
49 CHF 51.84
74 CHF 51.20
99 CHF 48.00
199 CHF 47.36
249 CHF 46.72
499 CHF 46.08
999 CHF 44.80
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
16K1.5/1242 ContiTech Synchroflex Toothed Belt 16mm Wide 1.5mm Pitch 828 Teeth
SKU: 16K1.5/1242

16K1.5/1242 ContiTech Synchroflex Toothed Belt 16mm Wide 1.5mm Pitch 828 Teeth

CHF 64.00 ex VAT
CHF 64.00
ex VAT

Description

Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous transmission throughout the entire field of drive technology. They enable purpose-made solutions to be realized effectively and economically.
Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers.
Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance.

Technical

No Teeth = 828
Width = 16mm
Tooth Pitch t = 1.5mm
Belt Length = 1242.5mm
Belt Thickness h< = sub>
s< = /sub>
= 1.2mm
Tooth Height h< = sub>
t< = /sub>
= 0.6mm
Flank Angle = 70 deg
Tension member loadings = 195 Fadm(N)
Belt weight = 0.016kg/m
