SKU: 16B-2-SNX-NO26-RENOLD
Renold SYNO 16B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
- Regular price
- CHF 74.00 ex VAT
- Sale price
- CHF 74.00
- Regular price
-
Not in stock
Quantity Price Breaks
2
CHF 65.86
5
CHF 62.16
10
CHF 61.42
29
CHF 60.68
49
CHF 59.94
75
CHF 59.20
100
CHF 55.50
200
CHF 54.76
250
CHF 54.02
500
CHF 53.28
1000
CHF 51.80
SKU:
16B-2-SNX-NO26-RENOLD
Renold SYNO 16B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
- Regular price
- CHF 74.00 ex VAT
- Sale price
- CHF 74.00
- Regular price
-
Description

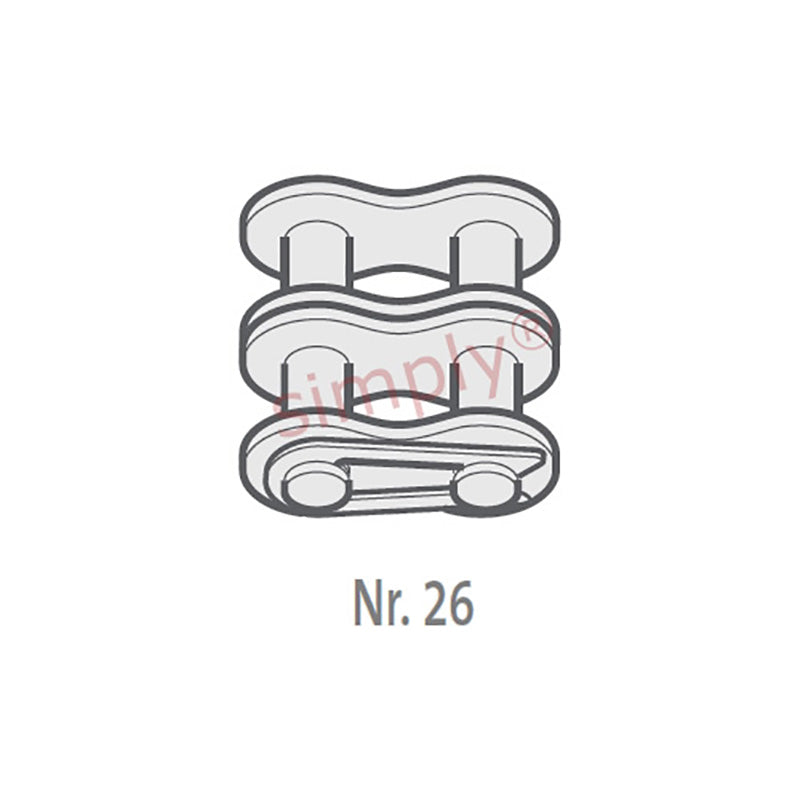

| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.08mm |
| Plate Width Inner max (E) | = | 3.76mm |
| Plate Width Outer max (F) | = | 3.1mm |
| Pin Diameter max (G) | = | 8.28mm |
| Pin Length max (H2) | = | 66.8mm |
| Connecting Link Extension max (J) | = | 2.2mm |
| Transverse Pitch nom (K) | = | mm |
| ISO606 Tensile Strength min | = | 106000 N |
| Weight | = | 0.046kg/m |
