SKU: 16009-MB

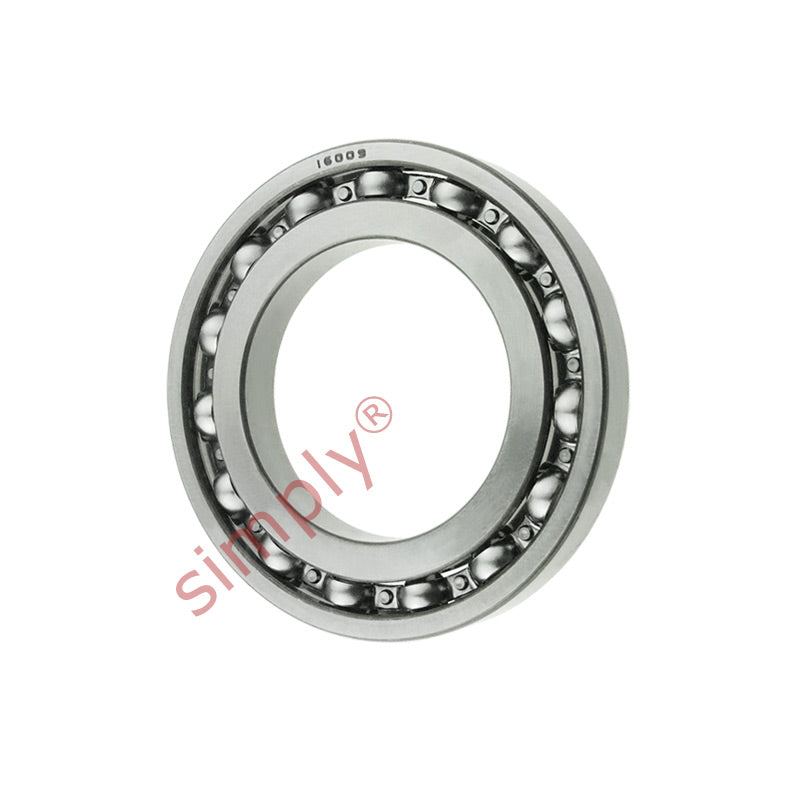

Major Branded 16009 Open Deep Groove Ball Bearing 45x75x10mm
- Regular price
- CHF 17.00 ex VAT
- Sale price
- CHF 17.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 15.13
19
CHF 14.28
29
CHF 14.11
39
CHF 13.94
49
CHF 13.77
74
CHF 13.60
99
CHF 12.75
199
CHF 12.58
249
CHF 12.41
499
CHF 12.24
999
CHF 11.90
SKU:
16009-MB
Major Branded 16009 Open Deep Groove Ball Bearing 45x75x10mm
- Regular price
- CHF 17.00 ex VAT
- Sale price
- CHF 17.00
- Regular price
-
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Technical
| d | = | 45mm |
| D | = | 75mm |
| B | = | 10mm |
| Dynamic load C | = | 16.5 kN |
| Static load Co | = | 10.8 kN |
| Fatigue load limit Pu | = | 0.52 kN |
| Reference speed | = | 20000 rpm |
| Limiting speed | = | 12000 rpm |
| Mass | = | 0.17 kg |
| d1 | = | 55mm |
| D1 | = | 65.4mm |
| r1r2 min | = | 0.6mm |
| da min | = | 48.2mm |
| Da max | = | 71.8mm |
| ra max | = | 0.6mm |
| Calc factor Kr | = | 0.02 |
| Calc factor | = | 14 |
