SKU: 140-2-SYNERGY-10FT-RENOLD

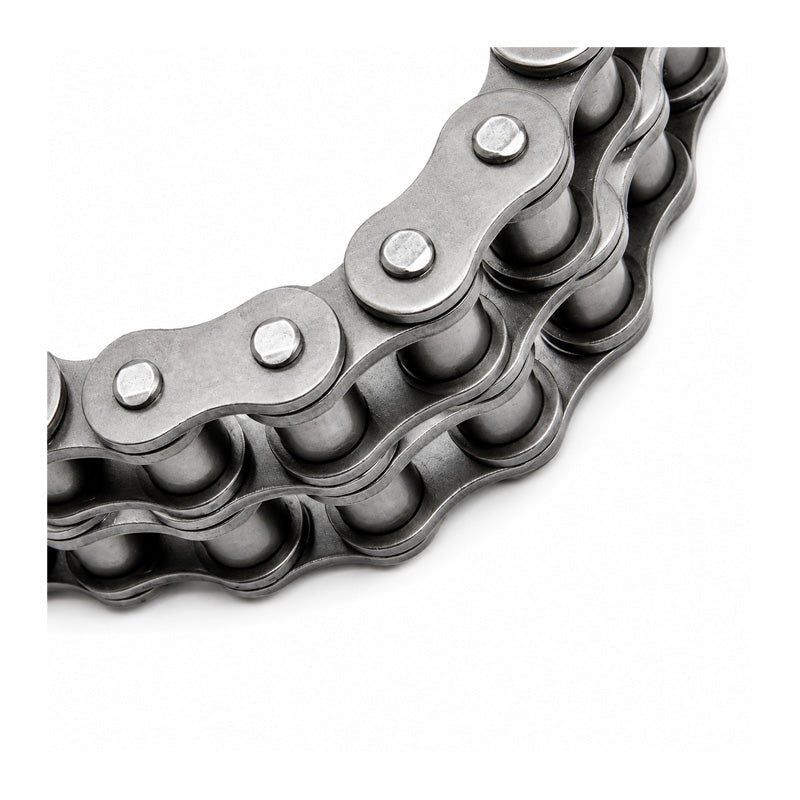

Renold Synergy 140-2 ANSI / AS Duplex Roller Chain 1-3/4 inch Pitch - 10 Feet Length
- Regular price
- CHF 6,072.00 ex VAT
- Sale price
- CHF 6,072.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 5,404.08
19+
CHF 5,100.48
29+
CHF 5,039.76
39+
CHF 4,979.04
49+
CHF 4,918.32
74+
CHF 4,857.60
99+
CHF 4,554.00
199+
CHF 4,493.28
249+
CHF 4,432.56
499+
CHF 4,371.84
999+
CHF 4,250.40
SKU:
140-2-SYNERGY-10FT-RENOLD
Renold Synergy 140-2 ANSI / AS Duplex Roller Chain 1-3/4 inch Pitch - 10 Feet Length
- Regular price
- CHF 6,072.00 ex VAT
- Sale price
- CHF 6,072.00
- Regular price
-
Description
Renold Synergy High Performance Chain: Renold Synergy chain will last three times longer in normal working conditions than your current non-Renold chain or your next chain is free. It's that simple. If the working life of your non Renold Chain is unsatisfactory, try Renold Synergy®. You will see productivity increase, downtime cut and costs saved. Renold are so confident that their chain will significantly outlast any other non-Renold brand chain that we will give you a replacement chain free*. There has never been a better time to specify Renold Synergy® - the only high performance transmission chain.
* Subject to site visit from a Renold Service Engineer
Renold Synergy® has transformed the productivity and efficiency of all these industrial applications and more.
Technical
| Pitch (A) | = | 1.75 inch |
| Pitch (A) | = | 44.45mm |
| Inside Width min (B) | = | 25.23mm |
| Roller Diameter max (C) | = | 25.4mm |
| Plate Height max (D) | = | 42.23mm |
| Plate Width Inner max (E) | = | 5.61mm |
| Plate Width Outer max (F) | = | 5.61mm |
| Pin Diameter max (G) | = | 12.71mm |
| Pin Length max (H2) | = | 101.8mm |
| Connecting Link Extension max (J) | = | 5.2mm |
| Transverse Pitch nom (K) | = | 48.87mm |
| ISO606 Tensile Strength min | = | 340000 N |
| Weight | = | 15.5kg/m |
