SKU: 10B-3-BB-NO107-RENOLD

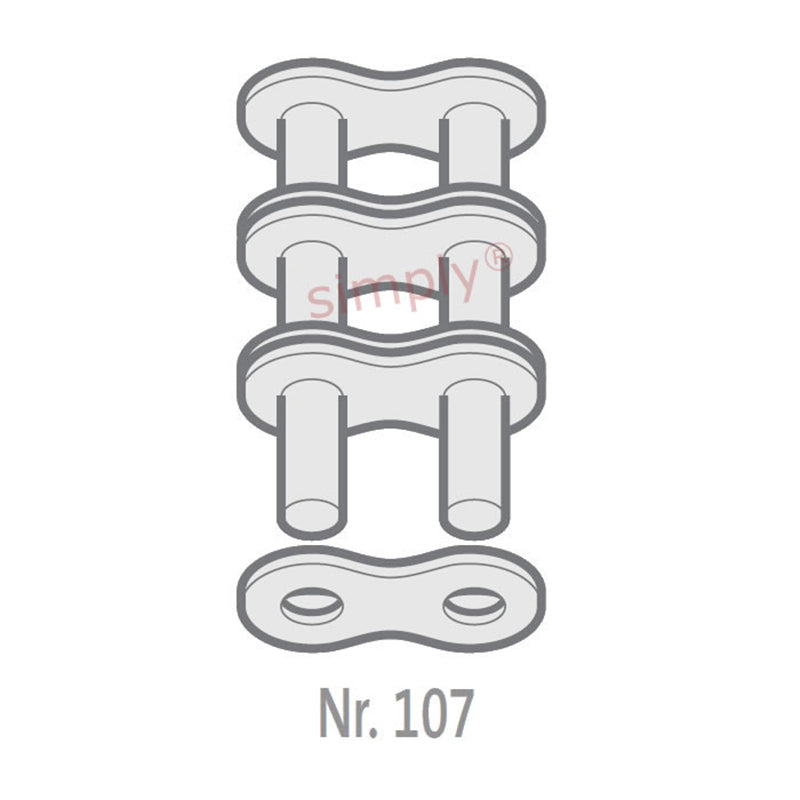

Renold Blue Box 10B-3-NO107 BS Triplex Chain Outer Link To Be Riveted 5/8 inch Pitch
- Regular price
- CHF 14.00 ex VAT
- Sale price
- CHF 14.00
- Regular price
-
In stock
Quantity Price Breaks
2
CHF 12.46
5
CHF 11.76
10
CHF 11.62
29
CHF 11.48
49
CHF 11.34
75
CHF 11.20
100
CHF 10.50
200
CHF 10.36
250
CHF 10.22
500
CHF 10.08
1000
CHF 9.80
SKU:
10B-3-BB-NO107-RENOLD
Renold Blue Box 10B-3-NO107 BS Triplex Chain Outer Link To Be Riveted 5/8 inch Pitch
- Regular price
- CHF 14.00 ex VAT
- Sale price
- CHF 14.00
- Regular price
-
Description
| Renold No. 107 European (BS) Triplex Connecting Link: For use with all sizes and types of chain where optimum security is desired. The link is supplied with bearing pins riveted into one outer plate. The other outer plate is an interference fit on the bearing pins, the ends of which should be riveted over after the plate is fitted. Press fit connecting links should only be used once; new links must be used to replace dismantled links. |
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.65mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H2) | = | 52mm |
| Connecting Link Extension max (J) | = | 2.5mm |
| Transverse Pitch nom (K) | = | 16.59mm |
| ISO606 Tensile Strength min | = | 66700 N |
| Weight | = | 0.009kg/m |
