SKU: 10B-2-NO26-MB
Branded 10B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
- Regular price
- CHF 5.00 ex VAT
- Sale price
- CHF 5.00
- Regular price
-
In stock
Quantity Price Breaks
2
CHF 4.45
5
CHF 4.20
10
CHF 4.15
29
CHF 4.10
49
CHF 4.05
75
CHF 4.00
100
CHF 3.75
200
CHF 3.70
250
CHF 3.65
500
CHF 3.60
1000
CHF 3.50
SKU:
10B-2-NO26-MB
Branded 10B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
- Regular price
- CHF 5.00 ex VAT
- Sale price
- CHF 5.00
- Regular price
-
Description

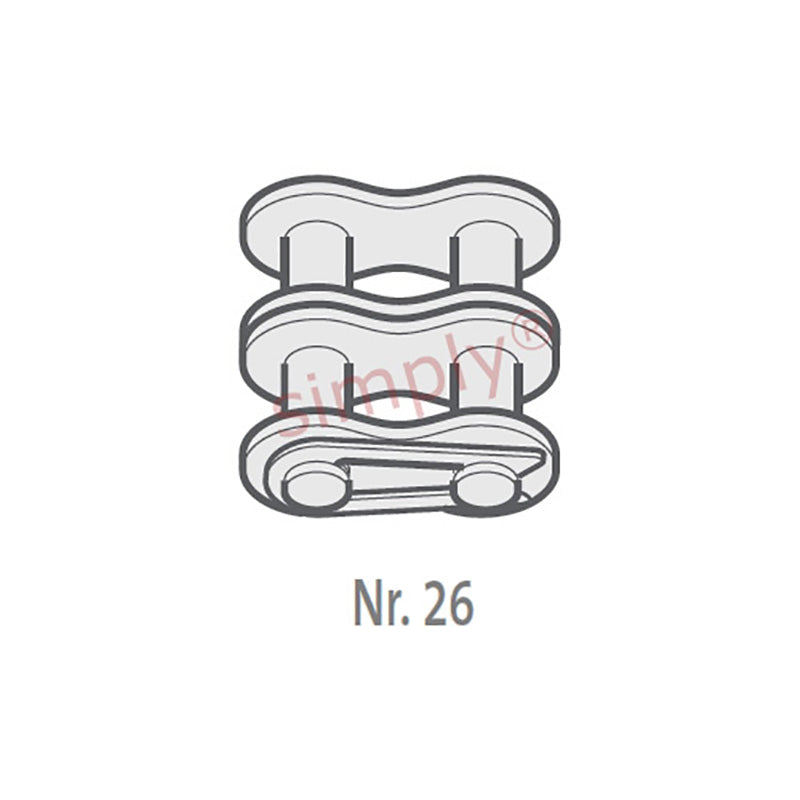

Branded CL / No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.65mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.7mm |
| Plate Width Inner max (E) | = | 1.65mm |
| Plate Width Outer max (F) | = | 1.65mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H2) | = | 36.2mm |
| Connecting Link Extension max (J) | = | 1.3mm |
| Transverse Pitch nom (K) | = | 16.59mm |
| ISO606 Tensile Strength min | = | 44500 N |
| Weight | = | 0.009kg/m |
