SKU: 100-2-NO12-MB
Branded 100-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1-1/4 inch Pitch
- Regular price
- CHF 16.00 ex VAT
- Sale price
- CHF 16.00
- Regular price
-
Not in stock
Quantity Price Breaks
2
CHF 14.24
5
CHF 13.44
10
CHF 13.28
29
CHF 13.12
49
CHF 12.96
75
CHF 12.80
100
CHF 12.00
200
CHF 11.84
250
CHF 11.68
500
CHF 11.52
1000
CHF 11.20
SKU:
100-2-NO12-MB
Branded 100-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1-1/4 inch Pitch
- Regular price
- CHF 16.00 ex VAT
- Sale price
- CHF 16.00
- Regular price
-
Description

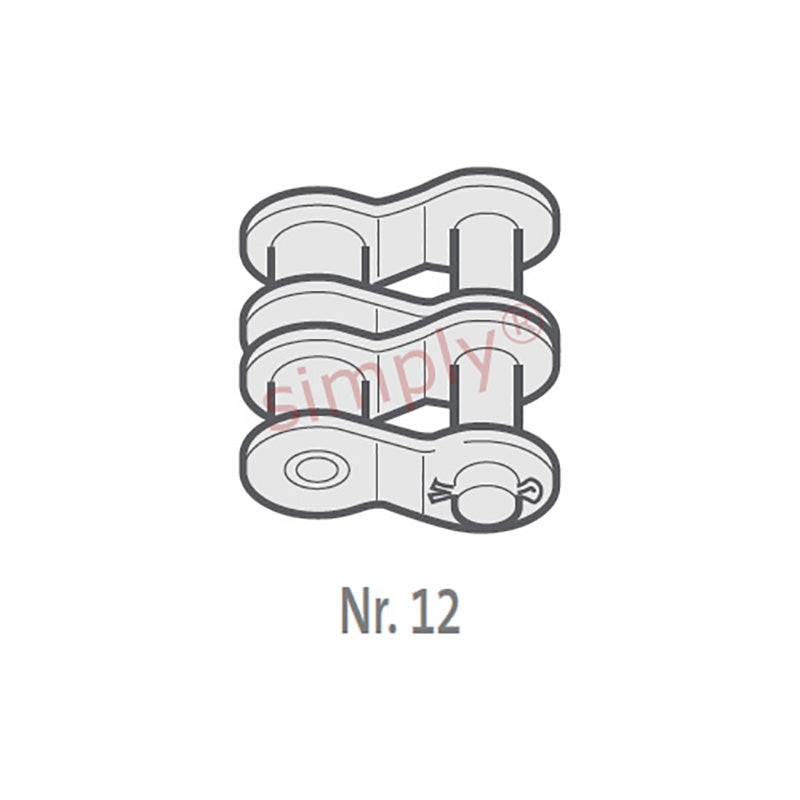

Branded OL / No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Technical
| Pitch (A) | = | 1.25 inch |
| Pitch (A) | = | 31.75mm |
| Inside Width min (B) | = | 18.9mm |
| Roller Diameter max (C) | = | 19.05mm |
| Plate Height max (D) | = | 30.1mm |
| Plate Width Inner max (E) | = | 3.9mm |
| Plate Width Outer max (F) | = | 3.9mm |
| Pin Diameter max (G) | = | 9.53mm |
| Pin Length max (H2) | = | 76.2mm |
| Connecting Link Extension max (J) | = | 4.3mm |
| Transverse Pitch nom (K) | = | 35.76mm |
| ISO606 Tensile Strength min | = | 174000 N |
| Weight | = | 0.08kg/m |
