SKU: 06B-2-SNX-NO26-RENOLD

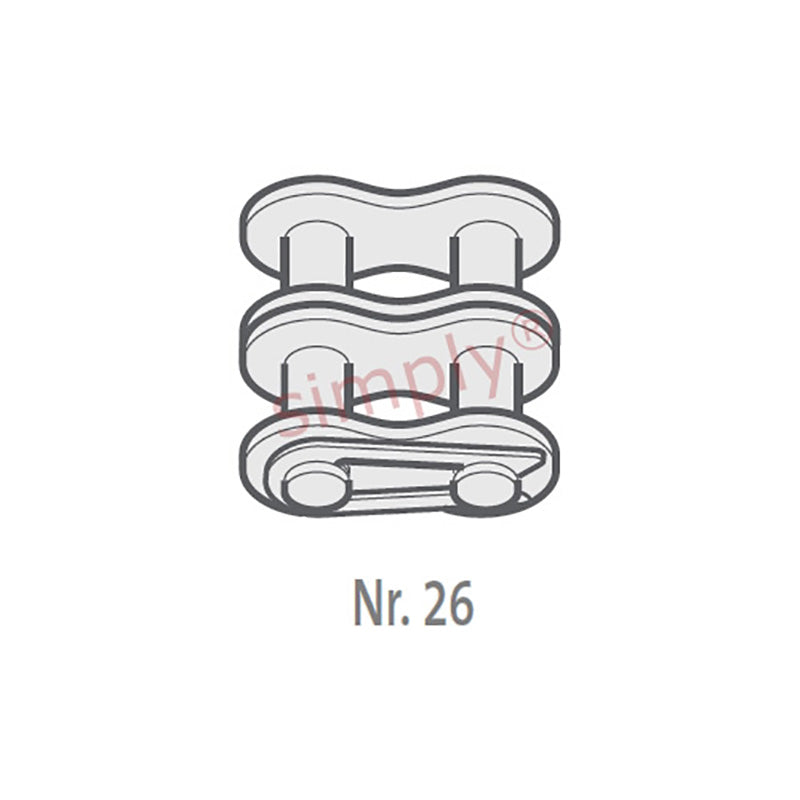

Renold SYNO 06B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
- Regular price
- CHF 23.00 ex VAT
- Sale price
- CHF 23.00
- Regular price
-
Not in stock
Quantity Price Breaks
2
CHF 20.47
5
CHF 19.32
10
CHF 19.09
29
CHF 18.86
49
CHF 18.63
75
CHF 18.40
100
CHF 17.25
200
CHF 17.02
250
CHF 16.79
500
CHF 16.56
1000
CHF 16.10
SKU:
06B-2-SNX-NO26-RENOLD
Renold SYNO 06B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
- Regular price
- CHF 23.00 ex VAT
- Sale price
- CHF 23.00
- Regular price
-
Description
| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical

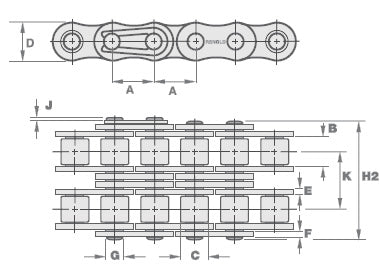

| Pitch (A) | = | 0.375 inch |
| Pitch (A) | = | 9.525mm |
| Inside Width min (B) | = | 5.72mm |
| Roller Diameter max (C) | = | 6.35mm |
| Plate Height max (D) | = | 8.2mm |
| Plate Width Inner max (E) | = | 1.29mm |
| Plate Width Outer max (F) | = | 1.04mm |
| Pin Diameter max (G) | = | 3.28mm |
| Pin Length max (H2) | = | 23mm |
| Connecting Link Extension max (J) | = | 1.3mm |
| Transverse Pitch nom (K) | = | mm |
| ISO606 Tensile Strength min | = | 16900 N |
| Weight | = | 0.002kg/m |
